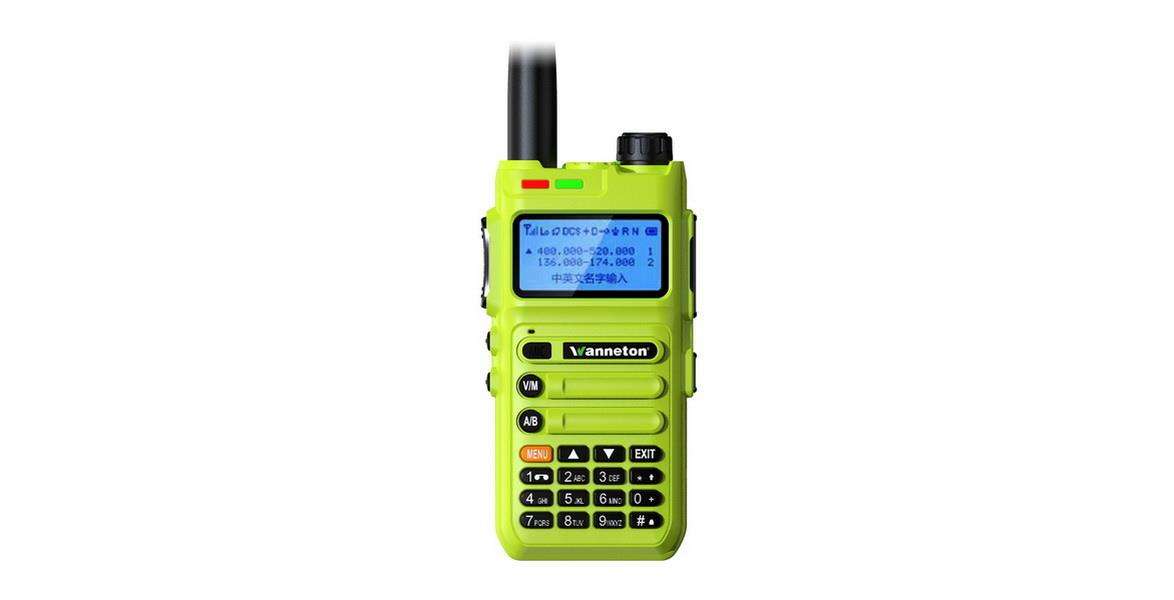

      UV5F-PLUS



                        Feature：Full band、One click decoding、Frog chirping at the end、USB Charging、Chinese/English input、Flash Light function、Radio  function、AM aviation reception、Frequency: Full band:136-520MHZ、128 Storage、Chinese/English language prompts、Radio  function、Wide/Narrow band、Interference frequenc…
















      Introduction:





	Feature：




	Full band、One click decoding、Frog chirping at the end、USB Charging、Chinese/English input、Flash Light function、Radio  function、AM aviation reception、Frequency: Full band:136-520MHZ、128 Storage、Chinese/English language prompts、Radio  function、Wide/Narrow band、Interference frequency more confidential call、Auto power-saving、Special signaling(frequency hopping)、VOX Make calls without pressing the PPT









      Parameters:



                            GENERAL：

Frequency：136-520MHz

Storage：128個

Channel space：25KHz/12.5KHz

Input voltage：7.4VDC

Battery capacity：6000mAh

Battery life：About 14 Hours

Standby：≤65mA

Receiver：≤450mA

Transmitter：≤1.8A@High power，650mA@Low power

Frequency stability：±2.5ppm

Work temperature：-30℃to+60℃

Antenna impedance：50Ω

Size：121X61X33mm

Weight：220g



TRANSMITTER：

Receiver sensitivity：0.25μV（12dB SINAD)

Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz

Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz

conducted spurious emission：≤-57dB@25KHz，≤-57dB@12.5KHz

SNR：≥45dB@25KHz，≥-40dB@12.5KHz1W@16ohms

Audio output power：≤5%

Radio distortion：+1~-3dB

Audio response（300-3000Hz）：+1~3dB



RECEIVER：

Transmissiom output power：≤10W

Modulation：16K0F3E@25KHz，11K0F3E@12.5KHz

Spurious emission：-36dBm＜1GHz，-30dBm＞1GHz

SNR：45dB@25KHz，40dB@12.5KHz

Radio distortion：≤5%

Modulation limited：±5.0KHz@25KHz，±2.5KHz@12.5KHz

Adjacent Channel Power：70dB@25KHz，60dB@12.5KHz

Audio response（300-3000Hz）：+1~3dB
