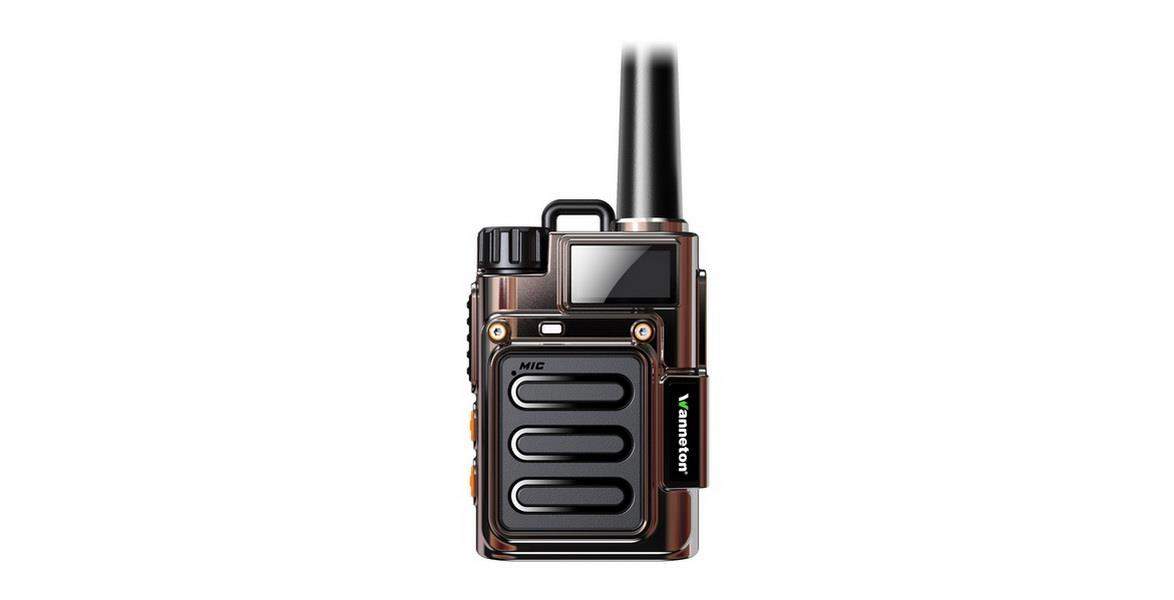

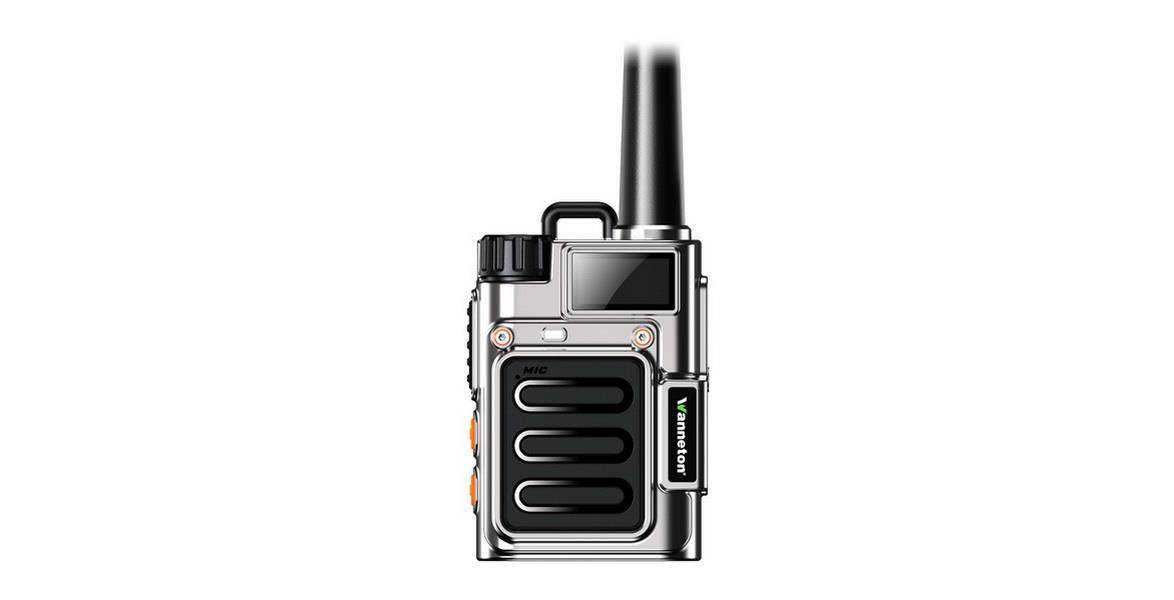

F3688
Feature：MetallicRetro appearanceAuminum alloy materiaAnti crackingFM RadioHigh definitionDecodingWireless replicationType-c three-in-onePassword reading and writing frequencyFrequency:UHF:400-520MHz50 Groups CTCSS,105 Groups DCSChinese/English language16 StorageVOXLaunch timeout limit TOTWide/Narrow…
Download
Introduction:
Feature：
Metallic
Retro appearance
Auminum alloy materia
Anti cracking
FM Radio
High definition
Decoding
Wireless replication
Type-c three-in-one
Password reading and writing frequency
Frequency:UHF:400-520MHz
50 Groups CTCSS,105 Groups DCS
Chinese/English language
16 Storage
VOX
Launch timeout limit TOT
Wide/Narrow band
USB charging
power-saving
Low volatge warning
Scaning function
Scramble function
computer programming
Definition of side keys
Metallic
Retro appearance
Auminum alloy materia
Anti cracking
FM Radio
High definition
Decoding
Wireless replication
Type-c three-in-one
Password reading and writing frequency
Frequency:UHF:400-520MHz
50 Groups CTCSS,105 Groups DCS
Chinese/English language
16 Storage
VOX
Launch timeout limit TOT
Wide/Narrow band
USB charging
power-saving
Low volatge warning
Scaning function
Scramble function
computer programming
Definition of side keys
Parameters:
GENERAL：
Frequency：UHF:400-520MHZ
Storage：16
Channel space：25/12.5KHZ
Input voltage：DC3.7V
Battery capacity：6800 mA
Battery life：About 14 hours
Standby：≤ 20mA
Receiver：≤ 450mA
Transmitter：≤ 1.3A @High power,650@Low power
Frequency stability：±2.5ppm
Frequency stability：-20°C-+50C
Antenna impedance：50Ω
Size：136*54*35mm
Weight：240g
TRANSMITTER：
Output power：≤5W
Emission current：≤1300 mA
Maximum frequency deviation：≤5KHz
Stray power：≤7.5uW
Adjacent Channel Power：≤-65dB
Signal to noise ration(wide band)：≥-45dB
Subaudio frequency(wide band)：0.7±0.1KHz
RX Sensitivity：8~12mV
RECEIVER：
Receiver sensitivity：-122dBm(12dB SINAD)
Audio power：≥350mW
Intermodulation(wide band)：≥55dB
Adjacent channel selectivity(wide band)：≥55dB
Clutter suppression：≥55dB
Audio output power：1W@8 ohms
Radio distortion：＜10%
Audio response（300-3000Hz）：≥450mA
Frequency：UHF:400-520MHZ
Storage：16
Channel space：25/12.5KHZ
Input voltage：DC3.7V
Battery capacity：6800 mA
Battery life：About 14 hours
Standby：≤ 20mA
Receiver：≤ 450mA
Transmitter：≤ 1.3A @High power,650@Low power
Frequency stability：±2.5ppm
Frequency stability：-20°C-+50C
Antenna impedance：50Ω
Size：136*54*35mm
Weight：240g
TRANSMITTER：
Output power：≤5W
Emission current：≤1300 mA
Maximum frequency deviation：≤5KHz
Stray power：≤7.5uW
Adjacent Channel Power：≤-65dB
Signal to noise ration(wide band)：≥-45dB
Subaudio frequency(wide band)：0.7±0.1KHz
RX Sensitivity：8~12mV
RECEIVER：
Receiver sensitivity：-122dBm(12dB SINAD)
Audio power：≥350mW
Intermodulation(wide band)：≥55dB
Adjacent channel selectivity(wide band)：≥55dB
Clutter suppression：≥55dB
Audio output power：1W@8 ohms
Radio distortion：＜10%
Audio response（300-3000Hz）：≥450mA
