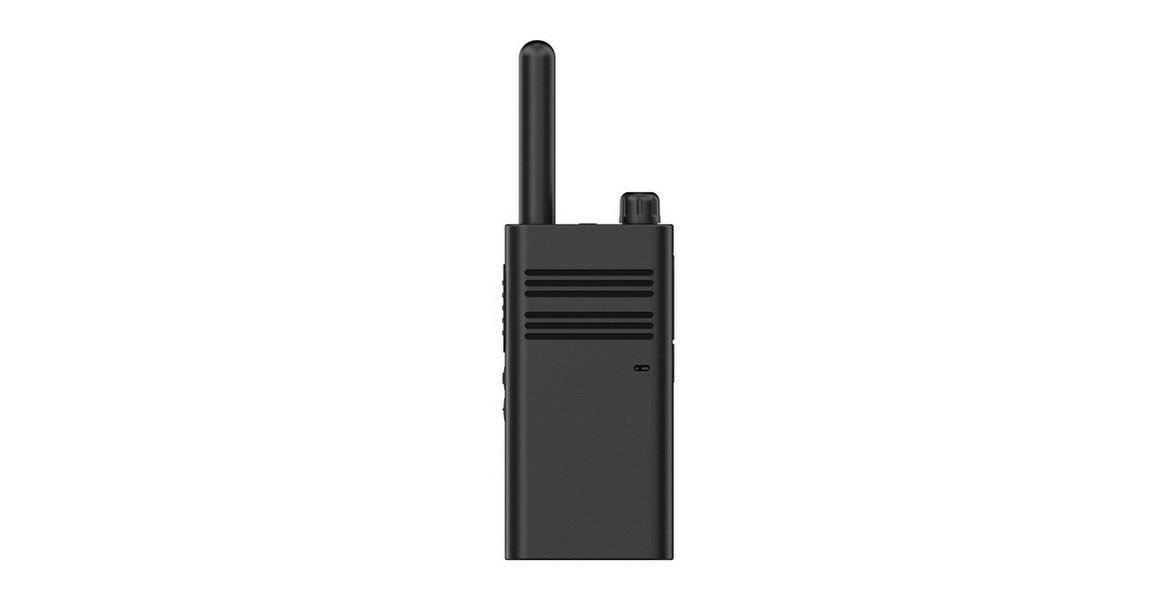

      M11



                        Feature；Lightweight and compactDecoding functionWireless replicationV0XTYPE-C ChargingReduce noise(optional)UHF400 – 480MHZ(receiver/transmitter)50 Group CTCSS,105 Group DCSChinese/English language reporting number16 StorageEmergence alarm Scramble functionScaning functionWide/Narrow bandBattery po…
















      Introduction:



                            Feature；

Lightweight and compact

Decoding function

Wireless replication

V0X

TYPE-C Charging

Reduce noise(optional)

UHF400 – 480MHZ(receiver/transmitter)

50 Group CTCSS,105 Group DCS

Chinese/English language reporting number

16 Storage

Emergence alarm

Scramble function

Scaning function

Wide/Narrow band

Battery power saving

Time limited launch(TOT)

Password reading and writing frequency







      Parameters:



                            GENERAL：

Frequency：UHF400-480MHz

Storage：16

Work voltage：DC3.7V

"Frequency stability："：±2.5ppm

Work temperature：-20℃~+50℃

Work way：Same frequency simplex

Antenna impedance：50Ω

Size：110x55x23.8mm



TRANSMITTER：

Output power：≤5W

Emission Current：≤1500mA

Maximum Frequency Deviation(wideband)：≤5KHz

Stray power：≤7.5uW

Adjacent channel power：≤-65dB

Signal to noise radio(wide band)：≥-45dB

Subaudio frequency（wide band）：0.7±0.1KHz

Modulation sensitivity：8~12mV



RECEIVER：

Sensitivity ：-122dBm(12dB SINAD)

Radio power：≥350mW

Radio distortion：<10%

Intermodulation（wide band）：≥55dB

Adjacent channel selectivity（wide band）：≥55dB

Clutter suppression：≥55dB

Receiving Current：≤450mA
