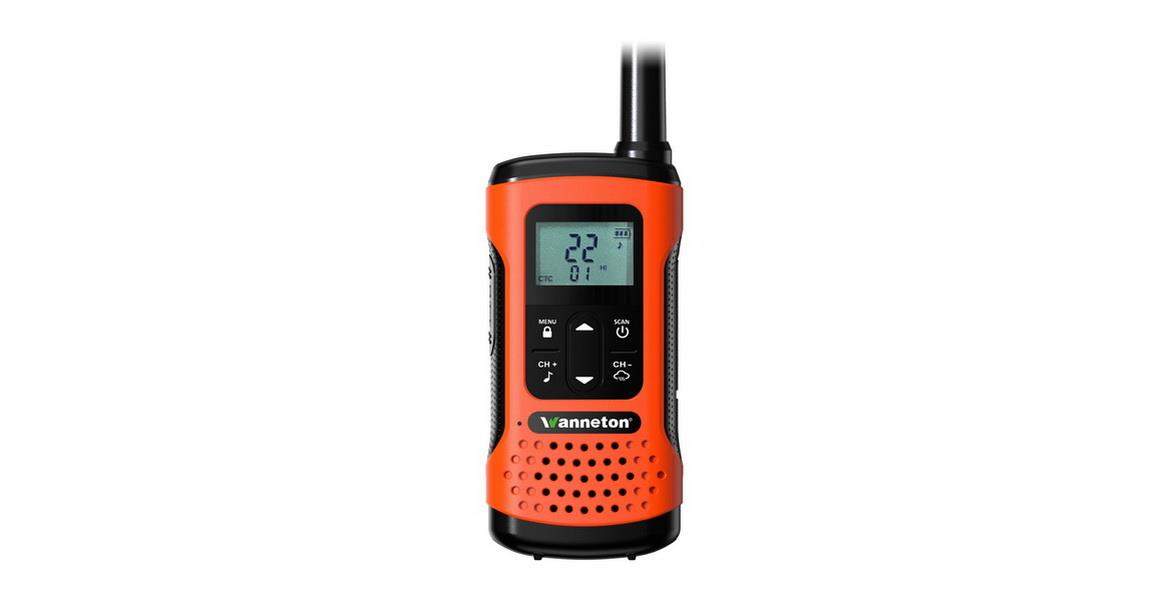

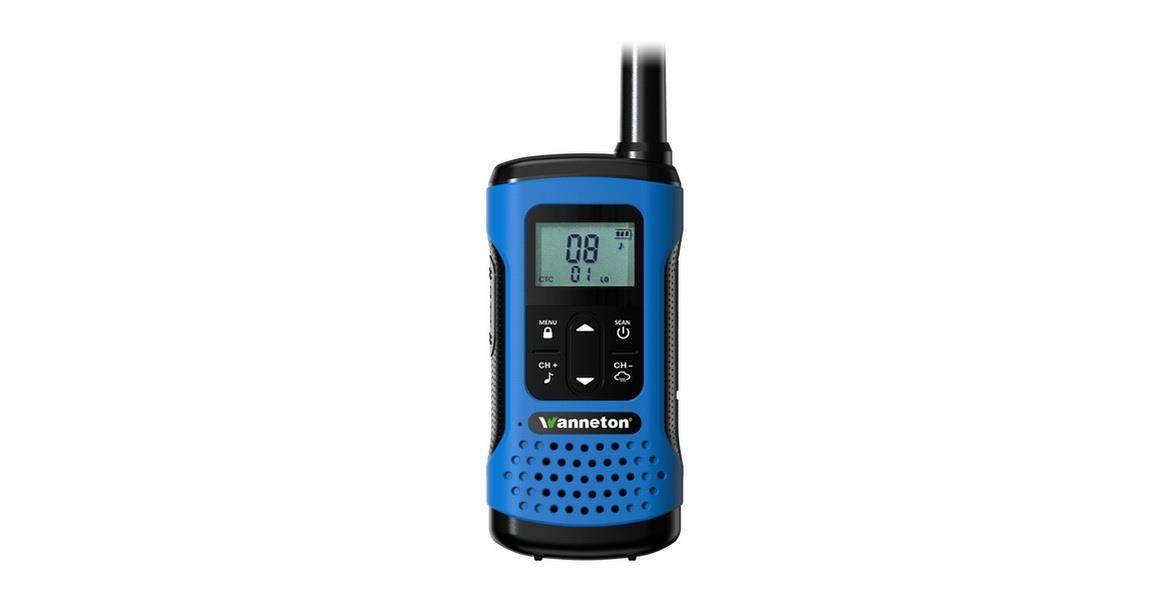

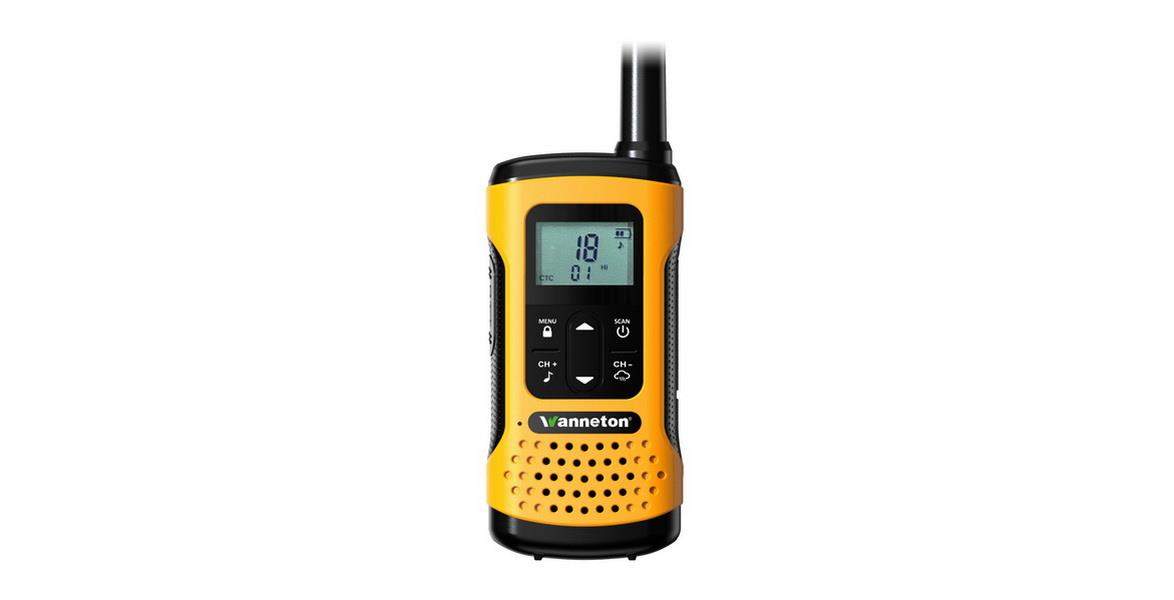

M8 FRS
Feature：Reduce noise(optional)One click frequency matchingNOAA Weather forecastTYPE-C ChargingVOX UHF 400– 480MHZ 38 Groups CTC、83 DCS10 ringtone options to choose Monitor FunctionReplication functionDual frequency standbyKeyboard lock functionLCD segment code displayChannel and sub tone scannin…
Download
Introduction:
Feature：
Reduce noise(optional)
One click frequency matching
NOAA Weather forecast
TYPE-C Charging
VOX
UHF 400– 480MHZ
38 Groups CTC、83 DCS
10 ringtone options to choose
Monitor Function
Replication function
Dual frequency standby
Keyboard lock function
LCD segment code display
Channel and sub tone scanning
Reduce noise(optional)
One click frequency matching
NOAA Weather forecast
TYPE-C Charging
VOX
UHF 400– 480MHZ
38 Groups CTC、83 DCS
10 ringtone options to choose
Monitor Function
Replication function
Dual frequency standby
Keyboard lock function
LCD segment code display
Channel and sub tone scanning
Parameters:
GENERAL：
Frequency： UHF:400-480MHz(22Channel + NOAA 11Channel)
Storage：22
Channel space：25/12.5KHZ
Input voltage：3.7vdc
Standby：≤ 20mA
Receiver：≤ 450mA
Transmitter：≤ 1.5A @High power,650@Low power
Frequency stability：±2.5ppm
Work temperature：-20℃ to +50℃
Antenna impedance：50Ω
Size(Excluding antenna)：112*54*30mm
TRANSMITTER：
Output power：High power/Low power<1.5W/0.5W
Emission Current：≤1500 mA
Maximum Frequency Deviation：≤2.5KHz
Stray power：≤7.5uW
Adjacent Channel Power：≤-65dB
Signal to noise radio：≥-45dB
Subaudio frequency（wide band）：0.35±0.1KHz
Modulation sensitivity：4~8mV
RECEIVER：
Receiver sensitivity：-122dBm (12dB SINAD)
Adjacent channel selectivity：≥50dB
Intermodulation rejection：≥50dB
Clutter suppression：≥50dB
Conducted spurious emission：≤-57dB@25KHz,≤-57dB@12.5KHz
Radio power：≥350mW
Radio distortion：<10%
Receiving current：≤450mA
Frequency： UHF:400-480MHz(22Channel + NOAA 11Channel)
Storage：22
Channel space：25/12.5KHZ
Input voltage：3.7vdc
Standby：≤ 20mA
Receiver：≤ 450mA
Transmitter：≤ 1.5A @High power,650@Low power
Frequency stability：±2.5ppm
Work temperature：-20℃ to +50℃
Antenna impedance：50Ω
Size(Excluding antenna)：112*54*30mm
TRANSMITTER：
Output power：High power/Low power<1.5W/0.5W
Emission Current：≤1500 mA
Maximum Frequency Deviation：≤2.5KHz
Stray power：≤7.5uW
Adjacent Channel Power：≤-65dB
Signal to noise radio：≥-45dB
Subaudio frequency（wide band）：0.35±0.1KHz
Modulation sensitivity：4~8mV
RECEIVER：
Receiver sensitivity：-122dBm (12dB SINAD)
Adjacent channel selectivity：≥50dB
Intermodulation rejection：≥50dB
Clutter suppression：≥50dB
Conducted spurious emission：≤-57dB@25KHz,≤-57dB@12.5KHz
Radio power：≥350mW
Radio distortion：<10%
Receiving current：≤450mA
