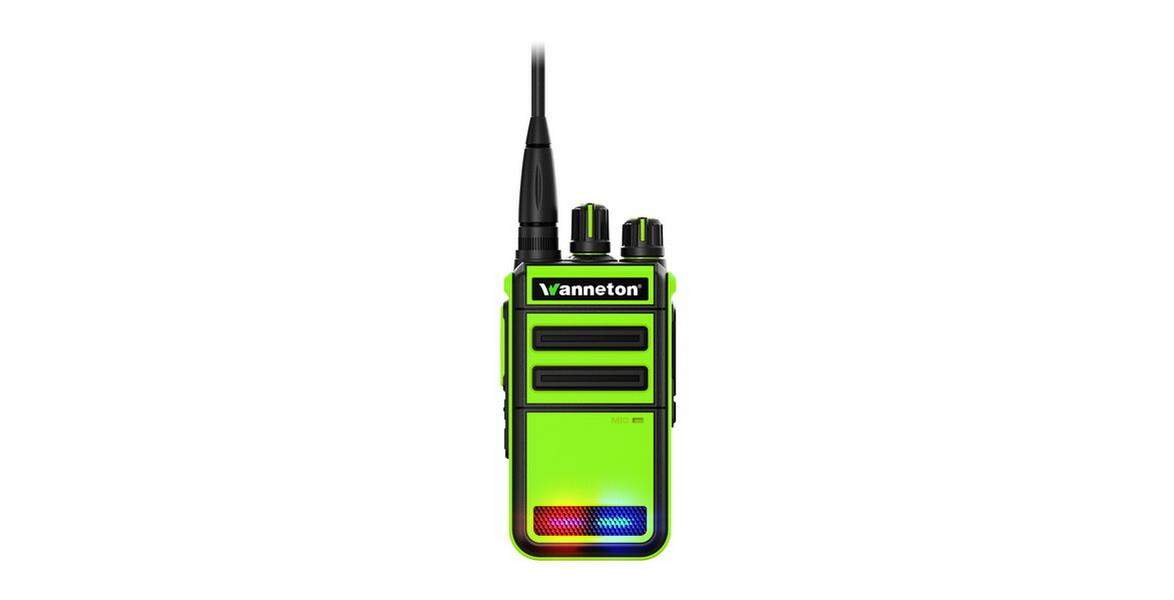

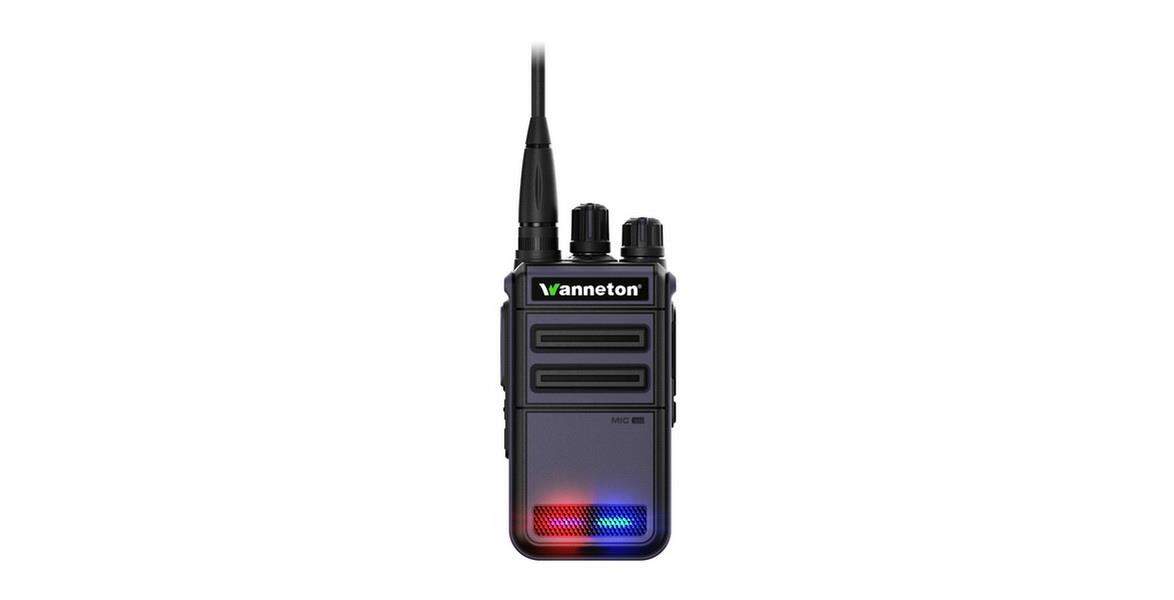

F510B
Feature：Frequency decodingFlashing light(optional)Noise reduction(optional)AlarmWireless replicationVOXUHF 400–520MHZ TYPE-CchargingCTCSS, DCS standard mute soundComputer programming password reading and writing frequencyChinese/English language reporting number16 StorageTime limited launch Power s…
Download
Introduction:
Feature：
Frequency decoding
Flashing light(optional)
Noise reduction(optional)
Alarm
Wireless replication
VOX
UHF 400–520MHZ
TYPE-Ccharging
CTCSS, DCS standard mute sound
Computer programming password reading and writing frequency
Chinese/English language reporting number
16 Storage
Time limited launch
Power saving function
Special mute sound
Non standard mute function
scanning function
Interference function
High/Low voltage warning
High/Low Power
Wide/Narrow band
Frequency decoding
Flashing light(optional)
Noise reduction(optional)
Alarm
Wireless replication
VOX
UHF 400–520MHZ
TYPE-Ccharging
CTCSS, DCS standard mute sound
Computer programming password reading and writing frequency
Chinese/English language reporting number
16 Storage
Time limited launch
Power saving function
Special mute sound
Non standard mute function
scanning function
Interference function
High/Low voltage warning
High/Low Power
Wide/Narrow band
Parameters:
GENERAL：
Frequency： UHF:400-520MHz
Channel capacity：16
Channel space：25/12.5KHZ
Input voltage：7.4vdc
Standby：≤ 20mA
Receicer：≤ 450mA
Transmitter：≤ 1.5A @High Power,650mA@Low Power
Frequency stability：±2.5ppm
Work temperature：-20℃ to +60℃
Antenna impedance：50Ω
Size：112*54*30mm
TRANSMITTER：
Output power：≤5W
Emission Current：≤1500 mA
Spurious emission：≤7.5uW
SNR：≥-45dB
Radio distortion：≤5%
Subaudio frequency（wide band）：0.7±0.1KHz
Adjacent channel power：≤-65dB
Modulation sensitivity：8~12mV
RECEIVER：
Receiver sensitivity：-122dBm (12dB SINAD)
Channel selectivity（wide band）：≥55dB
Intermodulation（wide band）：≥55dB
conducted spurious emission：≤-57dB@25KHz,≤-57dB@12.5KHz
SNR：≥45dB@25KHz,≥40dB@12.5KHz
Radio power：≥350mW
Radio distortion：<10%
Receiving current：≤450mA
Frequency： UHF:400-520MHz
Channel capacity：16
Channel space：25/12.5KHZ
Input voltage：7.4vdc
Standby：≤ 20mA
Receicer：≤ 450mA
Transmitter：≤ 1.5A @High Power,650mA@Low Power
Frequency stability：±2.5ppm
Work temperature：-20℃ to +60℃
Antenna impedance：50Ω
Size：112*54*30mm
TRANSMITTER：
Output power：≤5W
Emission Current：≤1500 mA
Spurious emission：≤7.5uW
SNR：≥-45dB
Radio distortion：≤5%
Subaudio frequency（wide band）：0.7±0.1KHz
Adjacent channel power：≤-65dB
Modulation sensitivity：8~12mV
RECEIVER：
Receiver sensitivity：-122dBm (12dB SINAD)
Channel selectivity（wide band）：≥55dB
Intermodulation（wide band）：≥55dB
conducted spurious emission：≤-57dB@25KHz,≤-57dB@12.5KHz
SNR：≥45dB@25KHz,≥40dB@12.5KHz
Radio power：≥350mW
Radio distortion：<10%
Receiving current：≤450mA
